Four independent voices
Each voice has its own pace, Gate (how long each note sounds, as a share of its pace), note rule, transposition, scale fit, velocity, MIDI channel, and rhythm pattern. With the built-in synth enabled, it also has an instrument. The link button beside Instrument syncs the voices: turned on, every voice takes the selected voice's instrument, and changing one changes them all.
The sequencer chooses the current chord. At each active pattern dot, a voice chooses one note from that chord using its Rule. With no notes, it is silent. With one note, every rule chooses that note.
Enable and Solo
Enable is the saved on/off switch at the beginning of the pattern tools above the dots. Its gear connects CC automation; the envelope controls Enable at each dot.
Mute (the original speaker icon) temporarily silences the voice without changing Enable or its automation. Muted notes remain visible as dashed outlines. Mute is a listening control, not saved in the patch or applied to exports.
Presets is grouped with pattern length, pace, rule and velocity. The voice and dot toolbars each stay on one line. As the card narrows, controls progressively move into ⋯. Dot edits move first, followed by condition, probability, ratchet, velocity, accent and articulation. The screenshot uses the Dotted eighths, Quarters legato, Habanera and Sustained presets to show ties and holds.
Solo (headphones) is a separate listening toggle. It isolates one voice without changing any Enable settings. Switch Solo to another voice, or press it again to hear all enabled voices. A disabled voice stays silent unless Enable or its automation turns it on. Enable edits made during Solo remain when Solo ends. Solo is not automated or saved in the patch, and does not affect exported MIDI or audio.
Choose a note rule
| Rule | Note choice |
|---|---|
| Nth | Voice 1 takes the lowest note, Voice 2 the next, and so on. Falls back to the highest when needed. |
| Lowest / Highest | Always the bottom or top note. |
| Up / Down | Cycles in pitch order and wraps at the end. |
| Up / Down, Down / Up | Bounces between the ends without repeating the turning note. |
| Up / Down +, Down / Up + | Plays each turning note twice. |
| Rise / Fall | Moves two positions one way, then one back, wrapping around. |
| Outside In / Inside Out | Alternates from the edges toward the center, or from the center outward. |
| Ends | Alternates the lowest and highest notes. |
| Random | Picks independently each time; repeats are possible. |
| Shuffle | Plays every note once in a random order, then reshuffles. |
| Walk | Moves one position up or down at random, turning inward at an edge. |
| No Repeat | Picks a different pitch from the last, if one is available. |
Edit the pattern

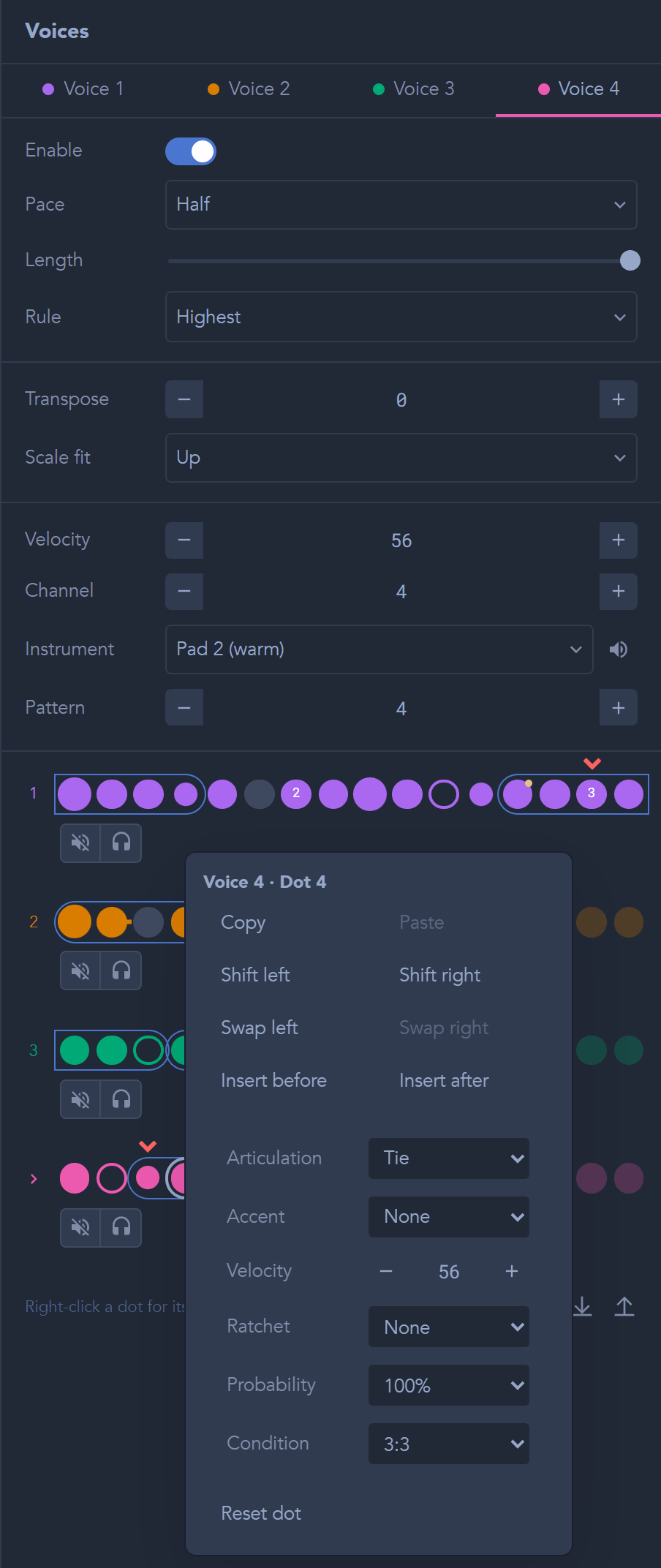

Patterns contain 1–16 dots. Click or tap a dot to select it and open its voice without changing the rhythm. Click or tap the selected dot again to turn it on or off. Right-click or long-press selects without toggling. Either way the lane grows into a card: the voice's settings in a strip across its top, how many dots its pattern has beside its numbered dots, and the dot's options in a strip under them — on or off, articulation, accent, velocity, ratchet, probability, and condition. Copy, paste, shift, swap, insert, and reset are buttons at the strip's right end, or behind the ⋯ button there when the strip is too narrow to show them all. Point at an option other than accent or velocity to show its gear, which lets a CC modulate it; every voice setting but velocity has one too, Enable's for whether the voice plays. A ratchet repeats within a dot; probability and conditions decide whether it plays.
While a voice is open, click or right-click another of its dots, or use the arrow keys, Home, and End, to edit another dot. The close button at the card's corner, or Escape, closes it. The other voices stay small, and show every edit as it is made. In the piano roll, the selected dot's notes are ringed, and the first is labelled with the dot, its note, and its velocity.
Click or tap a dot to select it and open its voice without changing the rhythm. Click or tap the selected dot again to turn it on or off. Right-click or long-press selects without toggling. Options in the bar at the bottom opens the dot's options in a sheet. See On a phone.
Dots show their settings: a ratchet splits a dot into its hits, a probability below 100% fills that share of it, an accent makes it bigger or smaller, a condition marks its corner, and a hold or a tie joins it to the dot after. A hold fills the dot's whole step, ignoring the voice's Gate, and lets go right at its end, so the next dot strikes again. A tie holds back the note-off: into the same note it sounds as one continuous note, and into a different one the next note starts before the first lets go, so a synth with glide slides between them. In the envelope editor's piano roll a held note ends in a hard stop and a tied note has a slur on into the note it joins. Click a lane's number or instrument to select that voice and open it, or click it again to close it, without changing its rhythm.
Line a voice up with the roll
The button with arrows beside an open voice's close button lines the lanes up with the piano roll under them. They stretch to the roll's full width and take its columns, and every voice's dots move to the times it plays them in the step, so a dot sits over the notes it plays. A pattern shorter than the step repeats as often as the voice comes round it, with a dashed line in the voice's colour where each repeat starts, and the roll's beat shading and grid lines run on behind the dots. Zoom or scroll the roll with its ruler, and the lanes follow. A repeated dot is the same dot each time: clicking a repeat selects that dot; clicking it again toggles the shared dot, and the arrow keys go from one dot to the next in time. The other voices show only their numbers until the lanes go back to their columns.
Only one voice stays open while the lanes are lined up: expanding closes the others, and opening another voice closes the one that was open. The same button, its arrows now pointing in, puts the lanes back in their columns; so does Escape, before a second Escape closes the voice. Closing the voice puts them back too. On a phone the lanes always keep their columns.
Rhythm presets
The wand at the start of an open voice's strip, before Pattern, opens its Presets: named rhythms to start from, and ways to reshape the dots it has. The panel hangs under the card, so the dots stay in view while it changes them; where it doesn't fit below and there is more room above, it opens above. Escape or a click outside closes it, except on the voice's own dots or its card's empty ground, so you can select some with it open. Every change it makes is one undo.
At its top, Preset names the rhythm the dots are, or says Custom when they are none. The list under it holds the built-in presets in two sections: Percussion, with Drums, Clave & Latin, Polymeters, and Variations, and Melody, with Pulses and Phrases, then your own presets under Custom. Each preset shows its dots, its pace, and its rule if it has one. Point at a preset, or move to it with the arrow keys, to try it on the card's dots, drawn dashed with the band its pace would reach. Move away and the voice's own dots come back. Click it, or press Enter, to choose it: that sets the dots, the pattern's length, the pace, and the rule if the preset has one. The table below lists the built-in ones.
The preset you point at, or move to with the keys, shows a gear at the end of its row. It opens the voice's Preset modulation, the same one from every row, so you can automate the pattern from wherever you are in the list. From the keyboard, press Tab from the list to reach the gear of the preset lit there.
On a phone, the wand beside the open voice's settings button opens the presets in a sheet. Preset opens the list in a sheet of its own, and choosing a preset there sets the dots straight away. In that list the gear stays on the checked preset's row, and the Preset field keeps its own gear too. See On a phone.
Your own presets
Save current pattern as preset, at the right end of the row with Hits, Length, and Rotate, saves the voice's rhythm as a preset of your own: its dots exactly as you drew them, with every dot's options, as many as its pattern is long, and its pace. Name it in the field that opens under that row and press Save or Enter; Escape or Cancel leaves it. It goes at the end of the list under Custom, checked, since the dots are now that preset, and from then on it works like a built-in one: try it, choose it for any voice or for selected dots, or pick it as a value of a Preset modulation. A preset of your own keeps no rule, so choosing it leaves the voice's rule as it is.
Each one has a delete button at the end of its row, shown with its gear. Deleting is one undo, like saving. A patch holds up to 16 presets of its own; to save another, delete one first.
Your presets belong to the patch. They're saved in its file and come back with it, so a file whose envelopes name one plays the same wherever it's opened. A new patch starts without any. A Preset modulation that names a preset you then delete plays the dots as drawn there; a preset saved later takes the next free place in the list, not the deleted one's, until all 16 have been used.
Select dots
To change only part of the pattern, select some of a voice's dots first. Drag across them with the mouse, as you would across steps in the grid. The box can start anywhere in the Patterns panel except on a control: on a dot, in the space beside a short pattern, on an open card's empty ground, or between lanes. It selects the dots it reaches along the row, including the faded dots past the pattern's end, in one voice: the lane it started in, or if it started outside a lane, the open voice if it reaches that, otherwise the voice whose row it reaches nearest where it started. As soon as the box starts, the dot whose options were open loses its selected ring, and each dot the box reaches gets that ring instead, as you drag. In a voice that isn't open, the voice opens on the first of them when you let go. A press on a dot that doesn't reach another dot is still a click on that dot. Shift-click a dot to select every dot from the one whose options are open through it, or press Shift with the arrow keys, Home, or End. In the phone layout, a mouse box starts between dots; with a finger, hold one of the open voice's dots, then draw along the row.
While dots are selected, the dot's options under the card are theirs: the strip names how many are selected, and setting on or off, articulation, accent, velocity, ratchet, probability, or condition sets it on every selected dot, as one undo. Where the dots differ, no choice is lit, a list is empty and says Mixed, and the switch is off with Mixed beside it; switching it turns them all on. The velocity shows the range the dots span, such as 89–99: the step buttons, a drag, or the arrow keys move every dot by the same amount, keeping them as far apart as they were, and a typed velocity moves the lowest to it and the others with it. These options have no gear while several dots are selected, since a CC drives one dot. Paste and reset act on every selected dot; copy and the moves wait until one dot is selected.
While dots are selected, the Presets panel says On the 4 selected dots only. A preset pointed at is tried on those dots alone, and choosing it puts its dots there, each the preset's dot at the same place, with the preset's dots repeated over the pattern. The voice's pattern length, pace, and rule stay as they are. The Edit bar acts on the selected dots too, as if they were the whole pattern: Double and Halve fill them rather than changing the pattern's length. Hits, Length, and Rotate still redraw the whole pattern.
Selecting any dot clears the selection, and its ring goes back to that dot: a click on a dot, a right-click, the arrow keys without Shift, or a long press. So do All dots in the panel and Escape. Closing the voice clears it too.
Euclidean rhythms and edits
Under the list, Hits, Length, and Rotate draw a Euclidean rhythm: Hits dots on, spread as evenly as they go over a pattern Length dots long, turned Rotate dots later. The steppers start from the dots the voice has — how many are on, how long the pattern is, and how far they are turned — and any change redraws the dots at once. A Euclidean rhythm is written E(hits, length): E(3, 8) is the tresillo, three hits over eight dots.
Preset, Hits, Length, Rotate, and Pace each have a gear, so a step's envelope can change the voice's rhythm. A Preset envelope changes only the dots that start while it holds another preset, for one loop of the pattern, and never the pace; Hits, Length, and Rotate change the whole step. A voice's Preset and its Euclidean settings can't both be modulated. The dots you draw are kept, and steps without an envelope play them as drawn. See Pattern automation.
Next come the voice's Pace, the same control as in its strip, and the Edit bar:
| Edit | What it does |
|---|---|
| Reverse | Plays the dots backwards. |
| Invert | Turns every on dot off and every off dot on. |
| Mirror | Makes the second half the first half played backwards. |
| Double | Plays each dot twice, doubling the length up to 16 dots. |
| Halve | Keeps every other dot, halving the length. |
| Random | Shuffles the dots, keeping as many on. |
| Clear / Fill | Turns every dot off, or every dot on. |
Dots move with their options, and notes held over several dots stay joined where their dots stay side by side. The panel's last line says what the dots are — how many of them are on, the Euclidean rhythm they make and the preset it is, if any — and how many of them one step reaches.
The built-in presets
The presets, as the list shows them. ● is a dot on, ○ a dot off, and – a dot held on from the one before, so the note sounds through it. A preset sets its own pace; one with a rule sets that too, and one without keeps the voice's.
| Preset | Group | Dots | Pace | Rule |
|---|---|---|---|---|
| Four on the floor | Drums | ● ○ ○ ○ ● ○ ○ ○ ● ○ ○ ○ ● ○ ○ ○ | 16th | |
| Backbeat | Drums | ○ ○ ○ ○ ● ○ ○ ○ ○ ○ ○ ○ ● ○ ○ ○ | 16th | |
| Eighth hats | Drums | ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ | 16th | |
| Boom bap | Drums | ● ○ ○ ○ ○ ○ ○ ● ○ ○ ● ○ ○ ○ ○ ○ | 16th | |
| Shaker | Drums | ● ● ● ○ ● ● ● ○ | 16th | |
| Son clave 3–2 | Clave & Latin | ● ○ ○ ● ○ ○ ● ○ ○ ○ ● ○ ● ○ ○ ○ | 16th | |
| Rumba clave | Clave & Latin | ● ○ ○ ● ○ ○ ○ ● ○ ○ ● ○ ● ○ ○ ○ | 16th | |
| Tresillo | Clave & Latin | ● ○ ○ ● ○ ○ ● ○ | 16th | |
| Cinquillo | Clave & Latin | ● ○ ● ● ○ ● ● ○ | 16th | |
| Bossa nova | Clave & Latin | ● ○ ○ ● ○ ○ ● ○ ○ ○ ● ○ ○ ● ○ ○ | 16th | |
| Cáscara | Clave & Latin | ● ○ ● ○ ● ● ○ ● ○ ● ○ ● ● ○ ● ○ | 16th | |
| Five against four | Polymeters | ● ○ ● ○ ● | 16th | |
| Seven | Polymeters | ● ○ ● ○ ● ● ○ | 16th | |
| Gallop (8th triplet) | Polymeters | ● – ● ● – ● ● – ● ● – ● | 8th T | |
| Ghost notes | Variations | ● ○ ● ○ ● ○ ● ● ● ○ ● ○ ● ○ ● ● | 16th | |
| Fill every fourth | Variations | ● ○ ○ ○ ● ○ ○ ○ ● ○ ○ ○ ● ● ● ● (dots 14–16 on 4:4) | 16th | |
| Every dot | Pulses | ● ● ● ● ● ● ● ● | 16th | |
| Quarters | Pulses | ● ● ● ● | 4th | |
| Offbeats | Pulses | ○ ● ○ ● ○ ● ○ ● | 8th | |
| Every third | Pulses | ● ○ ○ | 16th | |
| Sustained | Phrases | ● – – – | 4th | |
| Quarters legato | Phrases | ● – ● – ● – ● – | 8th | |
| Dotted eighths | Phrases | ● – – ● – – ● – – ● – – ● – – ○ | 16th | |
| Charleston | Phrases | ● – – ● – ○ ○ ○ | 8th | |
| Habanera | Phrases | ● – – ● ● – ● – | 16th | |
| Pedal and answer | Phrases | ● – – – ○ ● ● ● | 8th | Ends |
| Arpeggio run | Phrases | ● ● ● ● ● ● ● – | 16th | Up |
| Call and rest | Phrases | ● ● ○ ● – ○ ○ ○ | 8th |
Dot conditions
A dot's Condition decides which passes it plays on. A pass is one visit of the voice to that dot, so each dot gets one pass every time its pattern loops. The cycle conditions work like Elektron-style conditional trigs. A dot with a condition other than Always has a small mark at its corner.
A dot plays only when its condition and its Probability roll both pass. The condition menu draws each cycle's first eight passes beside its name, as the table below does. The cycles are the same as a jump's rules.
| Condition | Kind | When it plays | Passes 1–8 |
|---|---|---|---|
| Always | Constant | Every pass. The dot has no cycle restriction. | ● ● ● ● ● ● ● ● |
| 2:2 | Second of two | Silent on the first pass; plays on the second of every two (passes 2, 4, 6, 8…). | ○ ● ○ ● ○ ● ○ ● |
| 3:3 | Third of three | Silent on passes 1 and 2; plays on the third of every three (passes 3, 6, 9, 12…). | ○ ○ ● ○ ○ ● ○ ○ |
| 4:4 | Fourth of four | Silent on passes 1–3; plays on the fourth of every four (passes 4, 8, 12, 16…). | ○ ○ ○ ● ○ ○ ○ ● |
| 5:5–8:8 | Last of five to eight | Plays on the last pass of every five, six, seven or eight. 8:8 plays once in eight passes. | ○ ○ ○ ○ ○ ○ ○ ● (8:8) |
| 1x | Once on, once off | Alternates: plays one pass, skips the next. | ● ○ ● ○ ● ○ ● ○ |
| 2x | Twice on, once off | Plays two passes in a row, then skips the third. | ● ● ○ ● ● ○ ● ● |
| 3x | Three on, once off | Plays three passes in a row, then skips the fourth. | ● ● ● ○ ● ● ● ○ |
| 4x–7x | Four to seven on, once off | Plays four to seven passes in a row, then skips one. 7x skips only the eighth. | ● ● ● ● ● ● ● ○ (7x) |
| Last | Follows the previous dot | Plays only if the voice's previous dot played. If that dot failed its probability roll or its condition, this one stays silent. | Depends on the previous dot |
| Not last | Inverse of Last | Plays only if the voice's previous dot didn't. Useful for fallback notes and alternating responses. | Depends on the previous dot |
Last and Not last respond to the probability of the dot before them, so pairing them with a low-probability dot makes a pattern that varies on every loop.
Understand where a step starts
By default, voice patterns continue across sequencer steps. With a bar-long step and an eighth-note voice, step 1 uses dots 1–8 and step 2 uses dots 9–16 of a sixteen-dot pattern. Sync voices resets the patterns at every step instead.
The piano roll and velocity lanes show the same notes. While the sequence is stopped or paused, hover a note in the piano roll, or its lollipop in a velocity lane, to highlight it and bounce a note onto the dot that played it, drawn as the voice's pace: a sixteenth for a sixteenth voice, a dotted eighth for a dotted eighth, and the modulated pace where the step modulates it. Hover a dot to outline its notes in the piano roll.
See the dots a step reaches

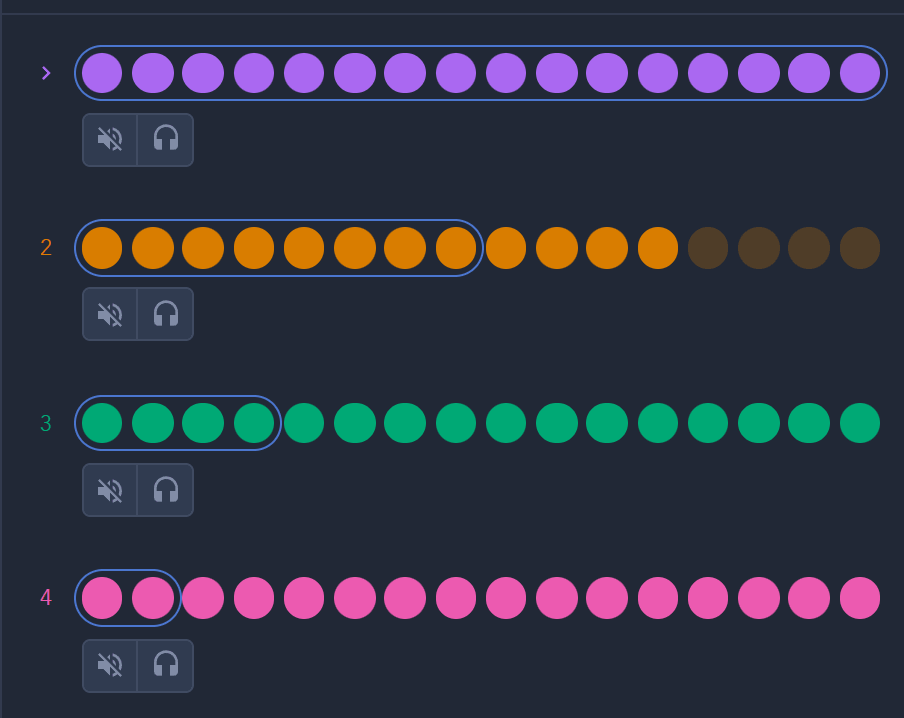

Behind each pattern lane, a shaded band marks the dots that voice plays while the sequencer sits on one step. Its length comes from the two paces: the sequencer's Pace divided by the voice's. Against a 1 Bar step, a 16th voice reaches 16 dots, an 8th voice 8, a 4th voice 4, and a Half voice 2. A band never covers more dots than the pattern has.
The figure at the lane's right end says how many times the whole pattern comes round in that step: 1× once, ½× half of it, 2⅔× twice and two thirds more. A fraction too long for the space is rounded, and its tooltip gives it exactly.
While the sequence is stopped, the bands show the step in the editor. During playback they follow the step that is sounding. Change either pace and the bands resize at once. If the step modulates a voice's pace or pattern length, the band shows the modulated value.
When a band wraps
Patterns continue across steps, so each band starts where the previous step left off. When a band runs past the end of the pattern, it splits in two: one part runs to the last dot and the rest carries on from dot 1. The ends where it is cut are square.

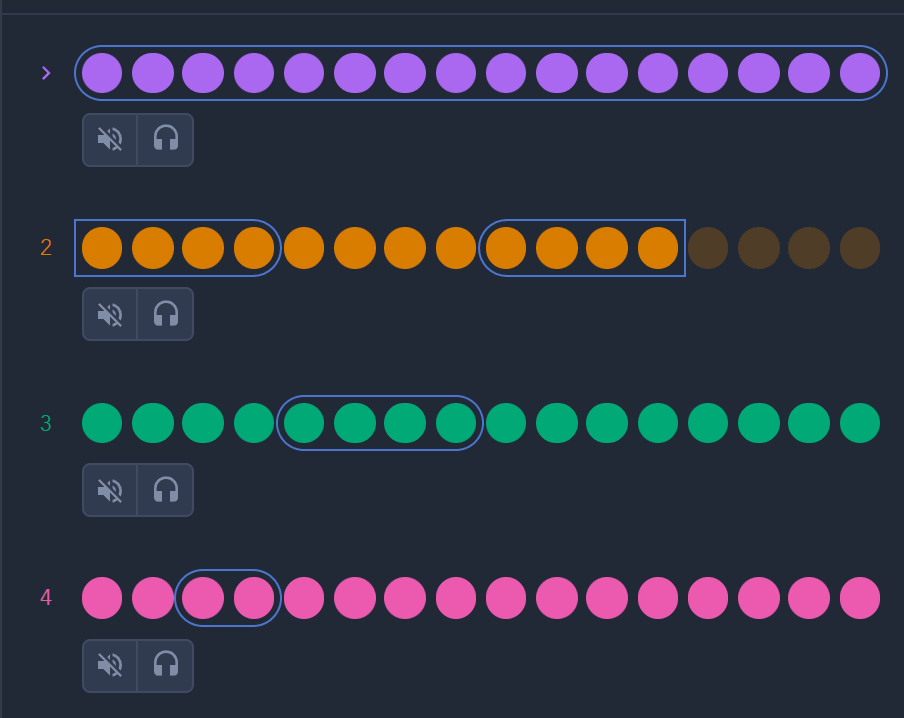

Here Voice 2 plays 8th notes from a 12-dot pattern. Step 1 reaches dots 1–8, so step 2 plays dots 9–12 and then 1–4. With Sync voices on, every step starts again from dot 1.
Spot voices playing the same note
When two or more voices sound the same key at the same time, a link icon appears at the lower right of each dot that played it. Each collision has its own color, so links of one color belong together. A voice striking its own key again is not a collision. The links describe the step in the editor.
Select a marked dot to grow its collision partners to 1.615× their normal size, without giving them a selected circle. Clearing or changing the selection restores their normal size. The link icons stay still and use the same size in expanded and collapsed patterns. Hover a marked dot to see the key and the other voices in its tooltip.
This example plays one chord, C4–E4–G4, in half-bar steps. Voice 1 uses Up at 16th pace, so it climbs the chord. Voice 2 uses Lowest at 8th pace, so it plays C4 on every dot. Their first dots play C4 together (red). Voice 1's seventh dot comes back round to C4 as Voice 2 plays its fourth (yellow).
Collisions in the piano roll

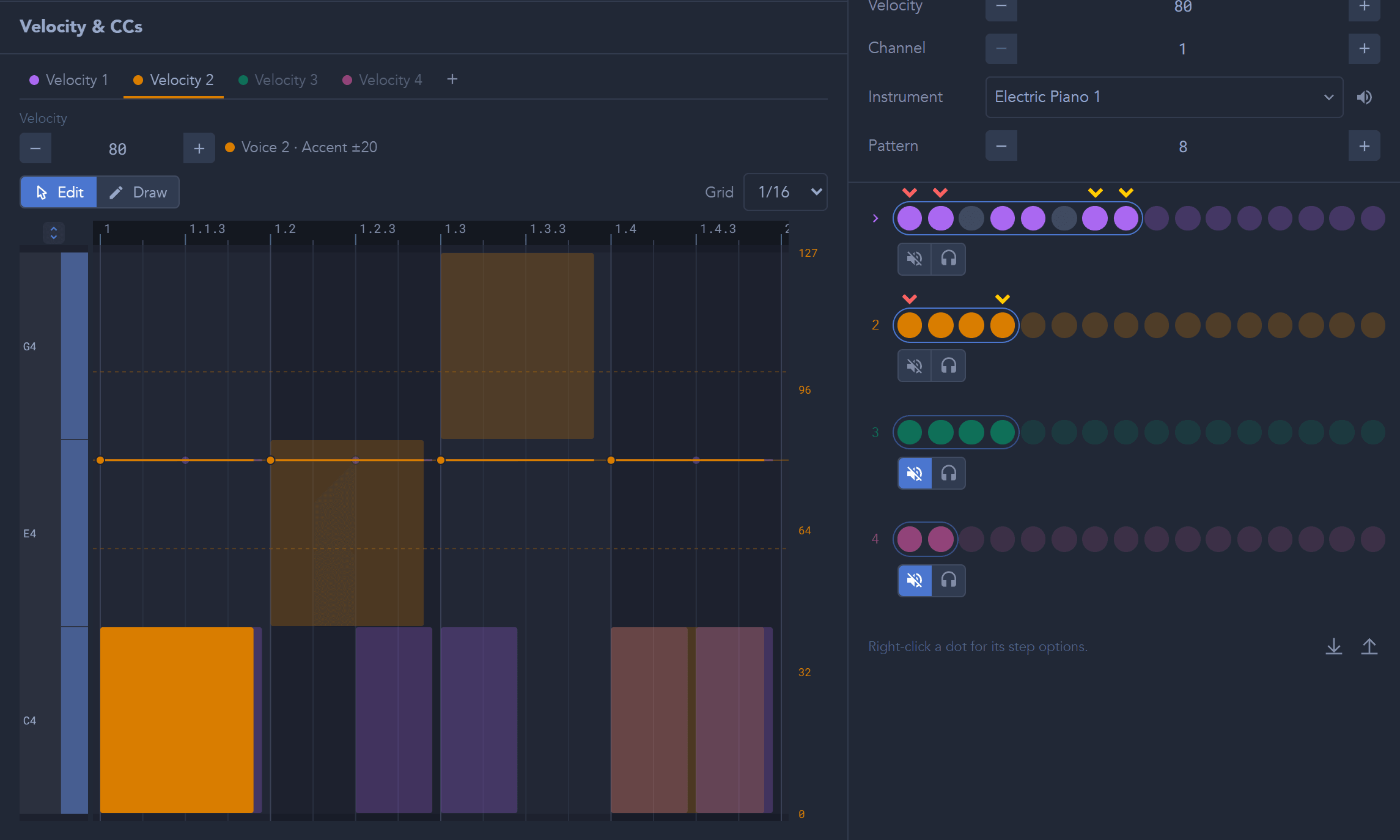

The piano roll under the pattern lanes shows the same collisions: notes from different voices on the same key, overlapping in time. Each note is drawn in its voice's color. Collapse the keyboard to the keys the sequence plays to bring them closer together.
Point at a dot to outline its notes in the roll. Here, Voice 2's Velocity tab is open and the mouse is on its first dot: its C4 at the start of the bar sounds with Voice 1's first. Halfway through the second beat, Voice 2's fourth C4 meets Voice 1's seventh.
Reuse a set of voices
Use the arrows on the Patterns header above the lanes to import or export a .midiseqpat.json file. It contains all four voices' settings and patterns. Importing replaces the voices in one undo operation and leaves the sequencer and its steps intact.
