Shape the performance

Velocity & CC envelopes

Shape individual hits and draw controller changes across a step.

On this page

Edit note velocity

Each voice has a Velocity tab under the pattern lanes. A lollipop's head marks its start and velocity; its horizontal stem shows its length. Drag either vertically to change velocity. Click a head to reset it to the voice's velocity.

In Draw mode, drag across several notes to paint velocities. Notes come from the voice patterns, so you cannot add notes in this lane. Changes apply to the pattern dot that generated the note. Accent lines use Settings → General → Accent amount.

A muted voice keeps its Velocity tab. Dashed outlines on every velocity and CC lane show the notes it would play if enabled; they are a visual preview, not sounding notes. You can prepare its velocities before unmuting it. A rest or a step without notes has nothing to preview.

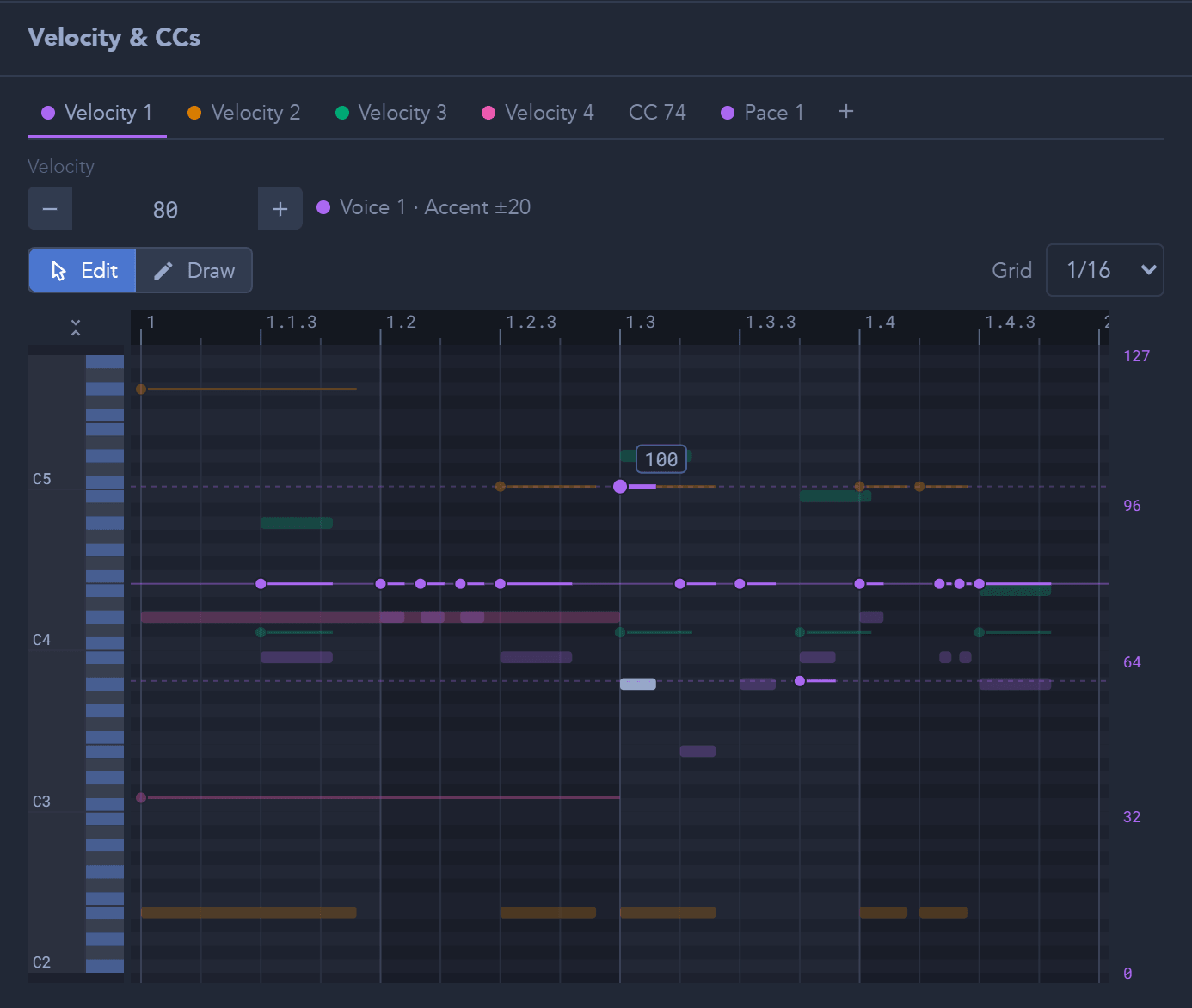

The selected voice is bright; other voices remain visible behind it.
The selected voice is bright; other voices remain visible behind it.

The selected voice is bright; other voices remain visible behind it.

Draw a CC envelope

Press + beside the lane tabs to add a controller. Set its CC number and channel. In Edit mode, click the line to add a point, or double-click an empty area. Drag points to move them, drag the line to raise it, and click a point to delete it. Right-click a point to set its exact value — a number, or one of the setting's values when the CC modulates a setting — or to delete it with the × button.

Switch to Draw, or press B while the graph has focus, to paint values. Points snap to the chosen grid. Hold Alt to work off-grid.

Switch to Erase to delete points: the pointer becomes an eraser, and clicking a point removes it. Drag across several points to remove them all in one stroke, which undoes as a single step. On a stepped envelope, each flat step has two handles: its point on the left and a corner on the right, where it jumps to the next value. Erasing either handle removes the whole step, and the previous value holds in its place. Both handles light up under the eraser.

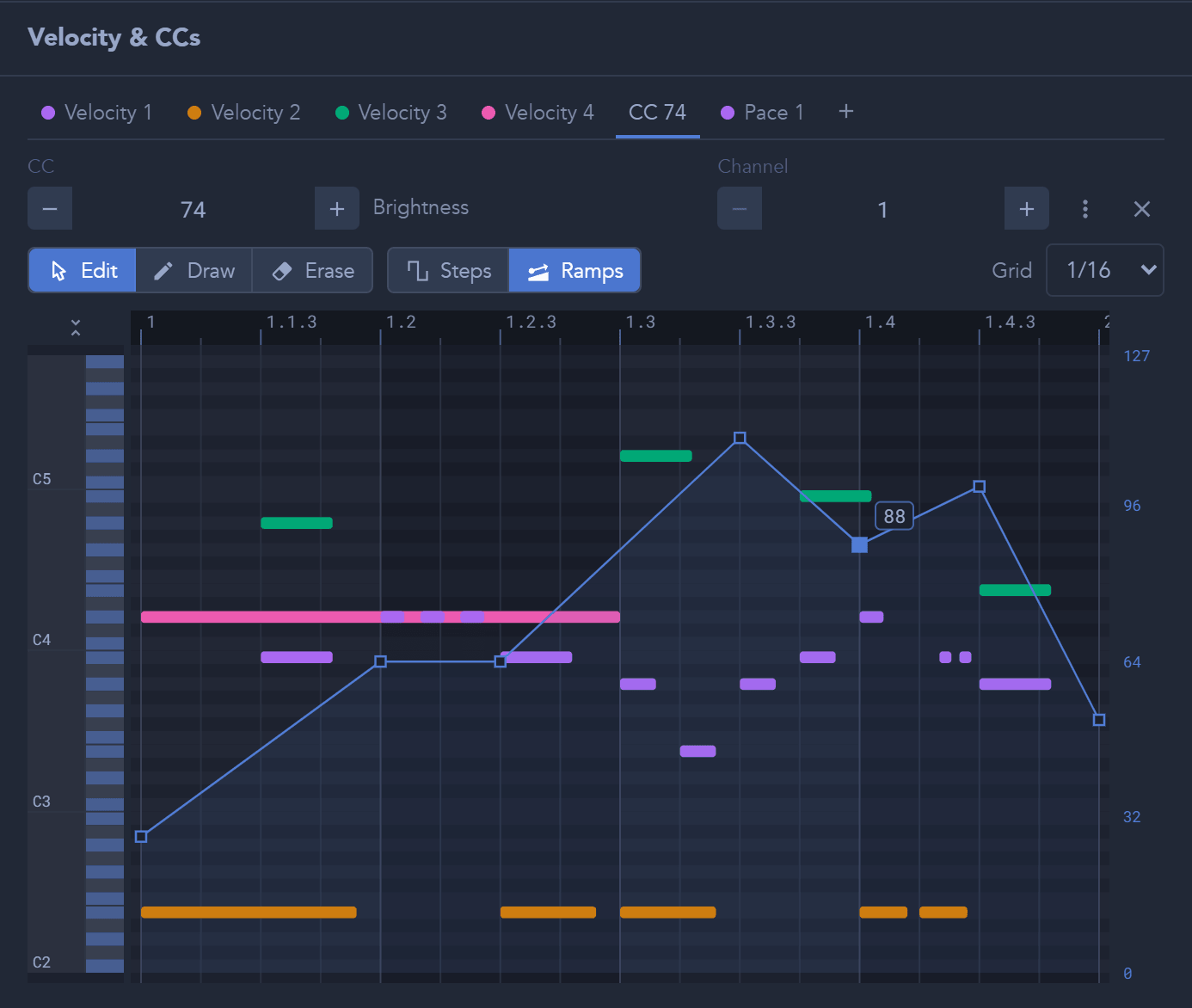

A ramped CC 74 envelope over the notes generated by the voices.
A ramped CC 74 envelope over the notes generated by the voices.

A ramped CC 74 envelope over the notes generated by the voices.

Copy, clear, or remove an envelope

Open the CC values menu (⋮) in a CC lane and choose Copy values. Select another step or CC lane, then choose Paste values. This replaces its points and Steps/Ramps shape, keeping the destination CC number and channel; an empty destination gets a new envelope. For example, copy a brightness curve from step 1 to step 2 without copying either step’s notes.

Clear values from this step removes the points but keeps the CC lane. Clear all removes that CC envelope from the step. If it was the last envelope driving a setting anywhere in the patch, its modulation binding is removed too. Removing a binding with the setting’s gear instead keeps its envelopes as ordinary CCs.

Edit points from the keyboard

Tab to the graph to edit a CC envelope without a mouse. One point is active: it is ringed, and a screen reader names it with its position and value, such as "Point 2 at 1.1.3: 96".

KeyAction
← / →Previous or next point
Home / EndFirst or last point
Shift + ← / →Move the point to the previous or next grid line
↑ / ↓Raise or lower the value by 1, or to the setting's next value
Page Up / Page DownRaise or lower the value by 10, or by four of the setting's values
Insert or IAdd a point on the line at the next free grid line
Delete or BackspaceDelete the point
Enter, Shift + F10, or the Menu keyOpen the point's value, as a right-click does; Esc returns to the graph
BSwitch between Draw and Edit

A run of value or time changes to one point undoes as a single step. The velocity lanes have no keyboard editing yet.

Choose steps or ramps

Steps holds a value until the next point. Ramps draws a straight transition between points. New envelopes use Steps, which also matches incoming MIDI controller messages.

The first value sends when the sequencer enters the step. The rest follows during that step. If Hold repeats the step, the envelope starts again on each repeat.

Zoom and move between steps

Drag the ruler up to zoom in, down to zoom out, and sideways to scroll. Without dragging, use the zoom out, zoom in, and zoom to fit buttons at the ruler's right end, and click the ruler to center the view there. From the keyboard, Tab to the ruler: ← / → scroll, Page Up / Page Down scroll by a whole view, Home / End go to the step's start or end, and +, −, and 0 zoom in, out, and to fit. The toggle in the ruler's corner, over the keys, reduces the piano roll to the keys used in the sequence. Keys that don't fit scroll inside the roll.

The selected CC tab stays open when you change steps, including steps where it has no envelope. Once a modulated CC has an envelope on any step, its tab appears on every step. A dim tab means this step has no envelope for it: drawing or pasting creates one here, and until then the setting uses its saved value.
