Start here

Connect MIDI

Route the voices to an instrument, record a keyboard, or use PUNCHER's built-in sound.

On this page

Use the built-in synth

In Settings → MIDI → Outputs, tick Built-in synth. Select a voice to choose its General MIDI instrument. No external MIDI port is needed.

Under Settings → SoundFont, you can add SF2, SF3, or DLS files. The selected SoundFont supplies both live synth playback and audio rendering. SoundFonts are stored in the browser.

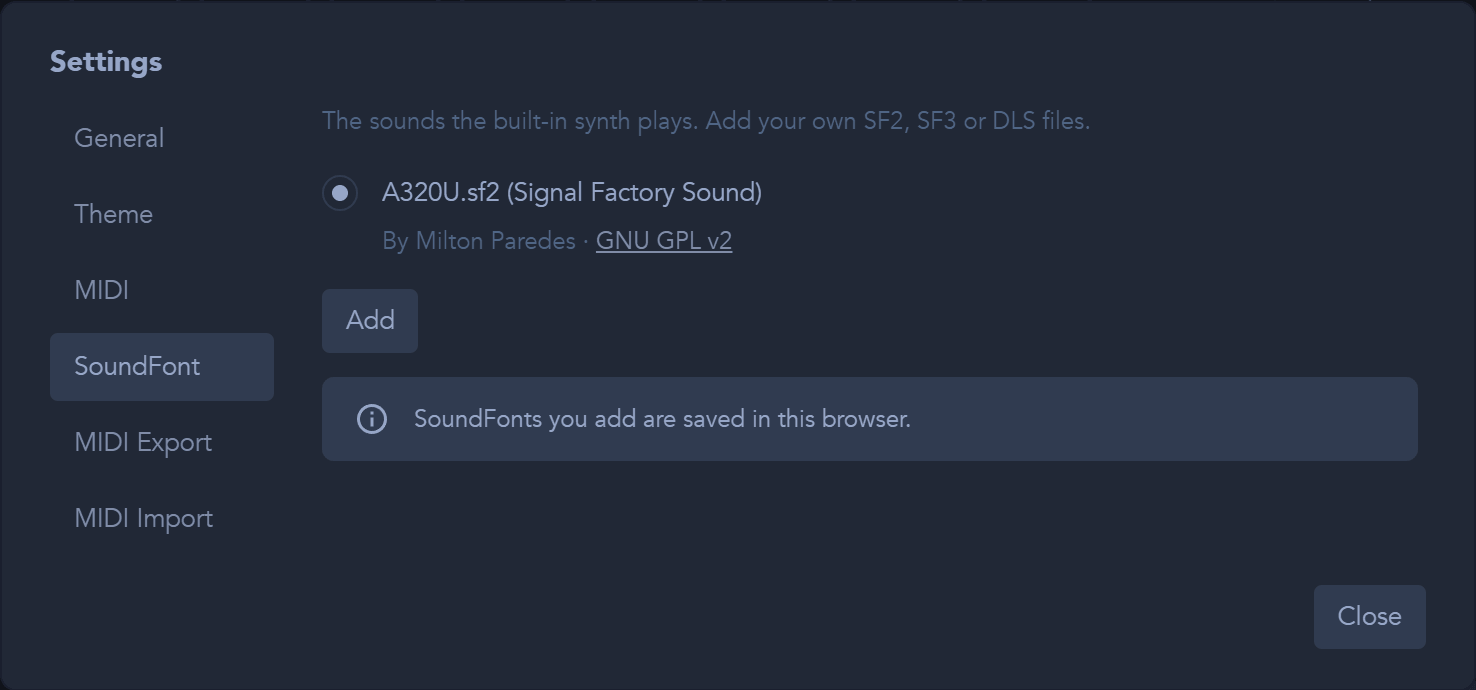

Choose the SoundFont used by the built-in synth and audio renderer.
Choose the SoundFont used by the built-in synth and audio renderer.

Choose the SoundFont used by the built-in synth and audio renderer.

Send MIDI to another instrument

  1. Connect your MIDI hardware, or create a virtual MIDI port for another app: with loopMIDI on Windows, or the IAC Driver on a Mac.
  2. In your DAW or instrument, enable that port as an input. Arm or monitor the receiving track as needed.
  3. In PUNCHER, tick the same port under Settings → MIDI → Outputs.
  4. Match the receiving instruments to the voices' MIDI channels. Each voice has a different channel.

A ticked output receives the whole sequence. Voice outputs can send individual voices to additional ports. To separate the voices completely, leave the shared outputs unticked and assign a port to each voice. Step CCs go only to shared outputs; clock and transport have their own routing under Clock.

Shared outputs carry all voices. Voice outputs add individual routes.
Shared outputs carry all voices. Voice outputs add individual routes.

Shared outputs carry all voices. Voice outputs add individual routes.

Windows: virtual ports with loopMIDI

Windows has no built-in way to pass MIDI between apps. loopMIDI, a free utility by Tobias Erichsen, creates virtual MIDI ports that any app can send to or receive from.

  1. Download and install loopMIDI, then open it.
  2. Type a name for the port, such as PUNCHER out, and press +.
  3. Reload PUNCHER, or reopen Settings → MIDI. The port appears under Outputs and Inputs.
  4. Tick it under Outputs in PUNCHER, and choose it as the MIDI input in your DAW.

loopMIDI must be running for its ports to exist. Turn on its option to start with Windows if you use it often.

macOS: Audio MIDI Setup

A Mac manages MIDI devices in Audio MIDI Setup, in Applications → Utilities. Choose Window → Show MIDI Studio to see the connected devices. Apple's guide explains how to set up MIDI devices.

To send MIDI to another app on the same Mac, use the built-in IAC Driver:

  1. In MIDI Studio, double-click IAC Driver.
  2. Tick Device is online. Add more ports with + if you want separate routes.
  3. Reload PUNCHER. The IAC ports appear under Outputs and Inputs in Settings → MIDI.

Safari

Safari does not support Web MIDI. To use MIDI devices in Safari, install the third-party Safari WebMIDI extension and allow it on this site. Without it, only the built-in synth is available. Edge, Chrome, Opera, and Firefox support Web MIDI directly; see Browser support.

Receive notes and controllers

Tick your keyboard under Inputs. You can enable several inputs. Use the Input filter to select channels, note range, transposition, and CCs. Then follow Record a performance.

If the browser blocks access, allow MIDI devices in the site's browser permissions and press Try again in PUNCHER.

MIDI clock

Open Settings → MIDI → Clock to choose how PUNCHER synchronizes with hardware or another sequencer. Ableton Link, MIDI Time Code, and MIDI Machine Control are not used.

Send clock and transport

Send MIDI clock sends 24 ticks per quarter note while playing. Send Start / Stop / Continue controls the receiving sequencer independently: Play starts it, Pause stops it, and resuming sends Continue. Start and Continue are scheduled with playback, so the first clock shares the notes' timing.

Enable Send song position on start and resume for receivers that support Song Position Pointer. Position is measured in sixteenth notes of elapsed playback, rather than grid step numbers: steps can have different lengths, jumps, and repeats. A fresh local Play defines position zero at the selected starting step.

By default, sync uses the note outputs. Untick Use note outputs for sync to select dedicated sync outputs, including devices that receive no notes. The built-in synth does not receive MIDI sync.

Follow another sequencer

Choose a Sync input. A named sync input works without enabling it for note recording. First active enabled input listens to the enabled note inputs and locks to the first one sending clock or transport; other sources are ignored until the sync settings change. This prevents two clocks from doubling the tempo.

  • Enable Take tempo from MIDI clock alone to follow BPM while controlling playback yourself.
  • Enable Follow MIDI transport alone to receive Start, Stop, and Continue while keeping the local tempo.
  • Enable both for phase and tempo synchronization, including Song Position Pointer while stopped. Start resets to the sequence's beginning. Stop holds position; Continue resumes from it. Start and Continue take effect on the next clock tick.

While following tempo, the transport shows MIDI and the received BPM instead of an editable tempo field. The Clock settings show the source and whether clock is waiting, arriving, locked, or lost. Sync offset adjusts external playback by −100 to +100 ms; negative plays earlier and positive later, relative to PUNCHER's normal output buffering delay.

If clock stops arriving for 500 ms or the source disconnects, externally synchronized playback pauses and silences its notes. Send a fresh Start or Continue to resume. Clock reception alone never restarts playback after a dropout. A changed sync mode or source resets the input lock.

Sending clock is suspended while following tempo, and sending transport is suspended while following transport. This prevents a MIDI feedback loop. Local emergency Stop remains available.
