Connect an envelope to a setting

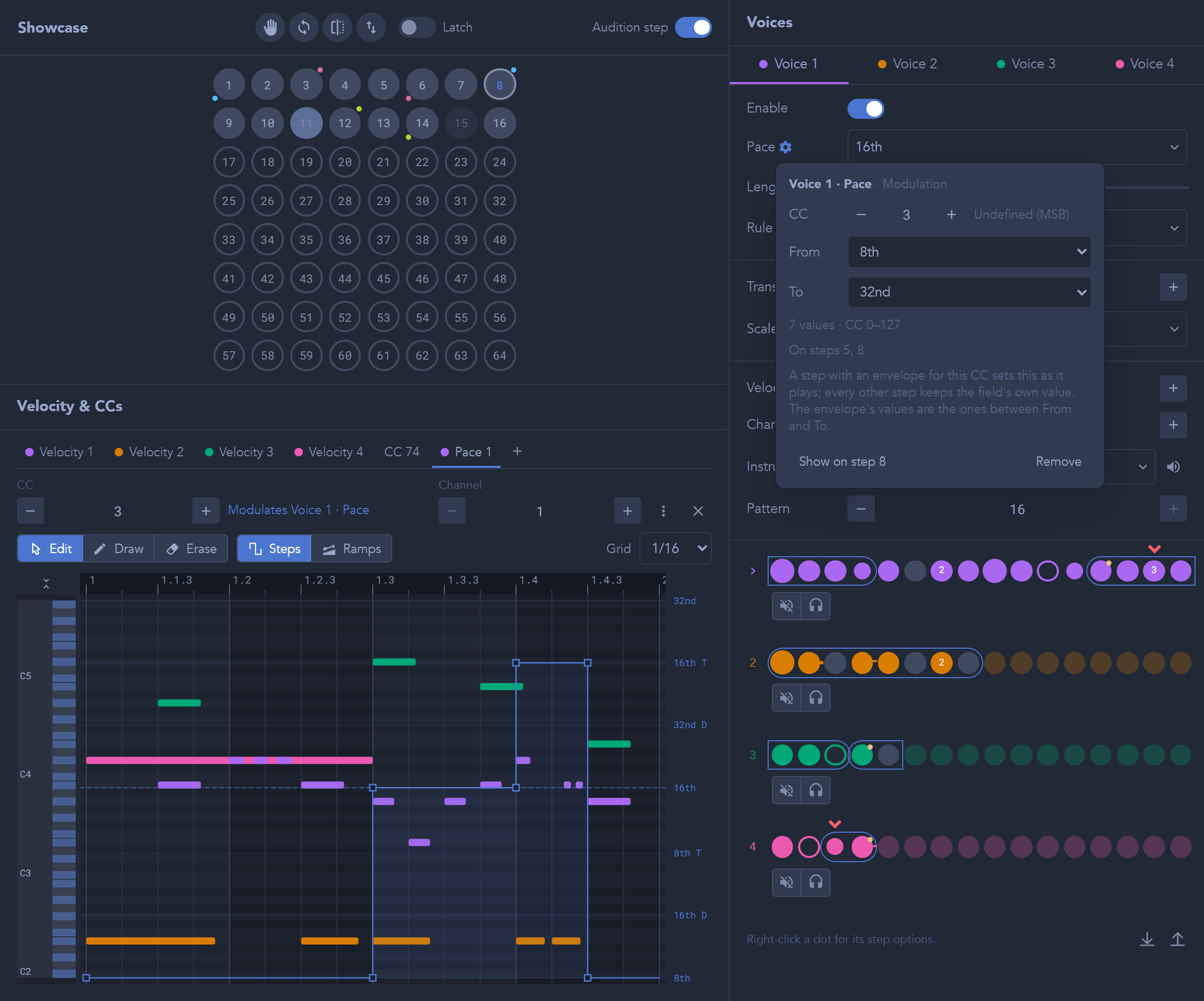

Hover a setting's label and click its gear. Choose a CC and the range of values it should cover, then press Modulate. PUNCHER suggests an unused, undefined MIDI controller number. Two settings cannot share a CC.
The envelope opens on the selected step at the setting's current value. Draw a change to hear the modulation. Its vertical axis shows the setting's actual values, such as note paces or rules, instead of raw CC numbers.
Base values and playback values
A step with a bound CC envelope drives the setting. A step without one uses the field's saved value. During playback, the field displays the envelope's value in the envelope color. Hover or edit the field to see and change its saved value.
Click the gear again to change the mapping, find the affected steps, or remove the binding. Removing a binding keeps the envelopes as ordinary CCs.
When changes take effect
A step’s duration is set by the sequencer Pace when the step begins. Sync voices reads its Off/On value at step entry. Notes per step can change the active note limit without deleting stored notes. Voice settings follow their envelopes as the voice plays.
Hold, Sync, Flip, and the performance Transpose action accept Off/On envelopes through their gears, including the small icons above the grid. Hold and Flip are read at step end, Sync at step entry, and Transpose at each note. Hold left On at the end can keep repeating the step.
Enable is the saved on/off switch at the beginning of the pattern tools above the dots. Its gear connects CC automation; the envelope controls Enable at each dot.
A voice’s Enable modulation is read at each dot. Solo is independent listening isolation and has no automation gear. Channel changes the channel of new notes. Instrument sends a program change before the next note when the instrument changes, and returns to the saved instrument on a step without an envelope. MIDI exports include these program changes.
The sequencer’s Size, Direction, Loop, Scale, tonic, Transpose, and Recording fit cannot be modulated. Older patches discard those bindings on load but keep their envelopes as ordinary CCs. A voice’s own Transpose and Scale fit still support modulation.
Modulate one dot
Click a dot, or right-click it to leave it as it is, to open its options under its voice's dots. Articulation, Ratchet, Probability, and Condition each have a gear, shown while you point at the control, which binds that option of that dot, in that voice, to a CC of its own. A dot's options are read each time the voice reaches it.
A dot's Accent and Velocity have no gear: set them on the dot, or draw them in the voice's Velocity tab. Patches saved with a modulation of either open without it, and its envelopes stay as plain CCs.
A dot modulation belongs to the dot's place in the pattern. Shifting, swapping, or inserting dots doesn't move it.
Modulate a voice's rhythm
In a voice's Presets, Preset, Hits, Length, Rotate, and Pace each have a gear. Preset's gear is at the end of the row you point at in the list, or the row lit by the keys, and it is the same gear on every row. It runs through the presets in the order the list has them, as a menu's modulation runs through its options, ending with your own under Custom. Its first value, As drawn, is the voice's own dots. A new Preset modulation runs from As drawn to the last preset in the list. Its From and To offer the presets you have saved, and a preset deleted after you chose it plays the dots as drawn. Hits, Length, and Rotate are the Euclidean rhythm's, and their envelopes are named Euclidean hits, Euclidean length, and Euclidean rotate. Euclidean length is not the voice's Pattern: it redraws the dots as well as setting how many play.
The dots you draw stay the voice's own. A step without an envelope plays them as drawn, hand edits and all, and so does a step whose envelope holds the value the dots already are: the preset they match, or the hits, length, and rotate they read as. Only a value that differs changes them.
Pattern automation
A Preset envelope changes only the part of the pattern it overlaps. Each dot reads the envelope where the dot starts. A dot that starts while the envelope holds another preset plays that preset's dot at the same place, with the preset's dots repeated over the voice's. A dot that starts while it holds As drawn, or the preset the dots already are, plays as you drew it. So an envelope that switches to Offbeats halfway through a step changes only the dots in the second half.
The envelope counts for one loop of the voice's pattern from the step's start: its pattern length times its pace, as the step begins. A step longer than that plays the rest of its dots at the envelope's starting value, so the automation goes back to where it started once the pattern has come round.
Pattern automation changes dots only. The voice's Pattern length, Pace, and Rule stay its own, and each has its own gear. In the Presets panel, Pace's gear is off while Preset is modulated; use the gear on the Pace in the voice's strip.
Euclidean automation
Hits, Length, and Rotate are read as the step begins and hold for the whole step. A step whose values differ turns the dots on and off as that Euclidean rhythm, and each dot keeps its other options. A step driving the voice's Pattern length as well has the last word.
A voice's pattern is automated by Preset or by Hits, Length, and Rotate, not both. While Preset is modulated, the gears of Hits, Length, and Rotate are off, and while any of them is, Preset's gear is off. The panel says why under the list. A patch saved before this rule that modulated both keeps Preset's modulation; the others go, and their envelopes stay as plain CCs.
While the sequence plays, the panel shows the step's preset and values in the envelope color. The dots on the card stay the ones you drew.
Sending modulation CCs
Modulation envelopes also send their MIDI CC messages unless Settings → MIDI → Send modulation CCs is off. Disable this when the controller would unintentionally change an external instrument. MIDI export has a separate Modulation CCs choice.
